Leonard TM-80-AT-LF-CP Alternate Temp Thermostatic Mixing Valves

Specification.

Inlets	1"
Outlet	1-1/4"
Minimum Flow(GPM)	13
Maximum Flow(GPM)	80
Weight (pounds)	18

Certifications.

City of Los Angeles

CSA B-125-03

Options.

Chrome Plated Finish	CP
Less Wall Support	LWS

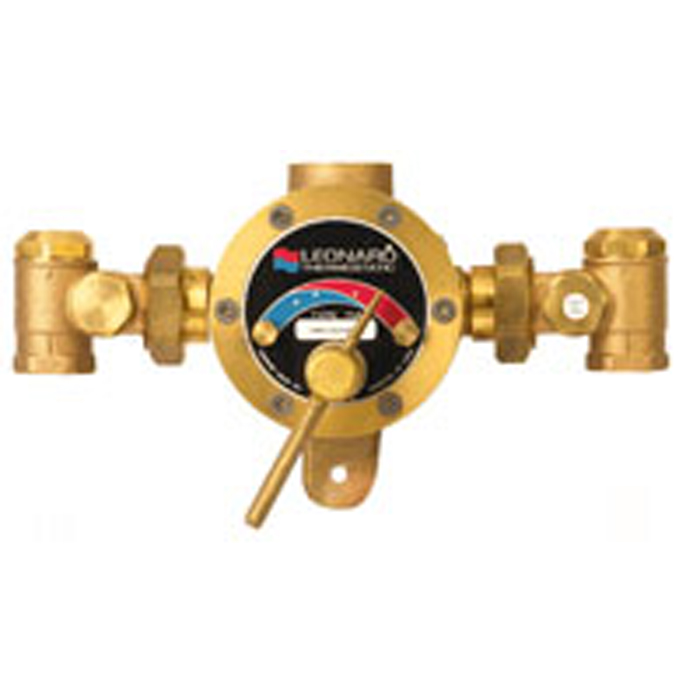

Valve with Checkstops for low temperature and industrial applications TM-80-AT-LF-RF

Thermostatic water mixing valve, DURA-trol� solid bimetal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature or pressure fluctuations. DURA-trol� is highly responsive and cannot be damaged by extremes in temperature. Internal parts of bronze, brass, and stainless steel, Integral wall support, cast lever handle, combination checkstops. Color-coded dial, HOT-COLD with Directional indicators. Maximum operating pressure 125 PSI (860 KPA).

Note: The operating outlet temperature range of these valves is outside the normal operating range of a Domestic Hot Water Distribution Valve and therefore they are more suitable for Process Temperature Control applications. Please see Leonard�s complete line of ASSE 1017 Certified Valves for Domestic Hot Water Applications. Valve is Lead Free Compliant.

Genuine Leonard Valve Product.

Items that are in stock ship the same or next business day.
Orders that do not meet the Leonard requirements from the factory are placed on a stock order then shipped.
Most Items that ship from the Leonard factory ship within a week and a half to two weeks from order date, except when purchasing a special order item. Special order shipping times vary in delivery times.
.

**Freight charges will apply for all Complete Valve Systems**
