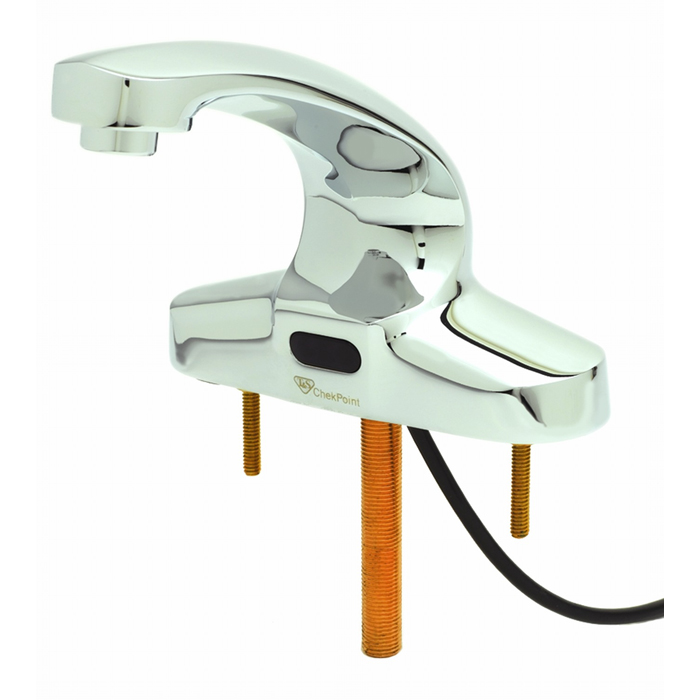

T&S BRASS EC-3103-LF22 EC-3103 CHECKPOINT ELECTRONIC FAUCET

T&S BRASS EC-3103-LF22 EC-3103 CHECKPOINT ELECTRONIC FAUCET
T&S BRASS EC-3103-LF22 EC-3103 CHECKPOINT ELECTRONIC FAUCET
$444.68/EACH
Part #EC-3103-LF22
T&S Brass
EC-3103-LF22 Ec-3103 Checkpoint Electronic Faucet w/ Optional 2.2gpm Laminar Flow Device
Specifications:
Part #: EC-3103-LF22
Part Description: EC-3103 ChekPoint Electronic Fct w/ Optional 2.2gpm Laminar Flow Device
UPC: 671262678377
Weight: 8.8
Unit of Measure: EA
Box Dims: 17.5x12x4.5
Harmonizing No: 8481.80.9020
Country of Origin: TAIWAN
Low Lead Content: Yes
Nozzle: Cast
Engineering Spec: 4 deck mount electronic sensor faucet with polished chrome plated brass body with integral spout, 2.2 GPM vandal resistant laminar flow device, AC/DC control module with internal flow control setting switches, temperature control mixing valve with check valves and 18 flexible stainless steel supply hoses with 3/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.
Brand/Trade Name: ChekPoint
Warranty: Three Year (Limited)
California CEC-400 (Power Supplies): Y
FEATURE1: 4 deck mount faucet w/ polished chrome plated brass body with integral spout
FEATURE2: 2.2 GPM vandal resistant laminar flow device, Series 8 (B-0199-28)
FEATURE3: Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
FEATURE4: Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
FEATURE5: Plug in AC transformer or (4) AA battery (DC) power options
FEATURE6: Mechanical temperature mixing valve with check valves
FEATURE7: 18 flexible stainless steel supply hoses with 3/8 compression connections
FEATURE8: Low battery LED indicator light
FEATURE9: Material: Polished chrome plated brass body
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Temperature: 40 F - 140 F
PERFORMANCE 3: Flow Rate: 2.20 GPM @ 60 psi
PERFORMANCE 4: Water Consumption: @ 10 sec = .37 gal
